• This item is now an E10 LED!
• Uses only a fraction of the power of conventional bulbs!
• Shines much brighter than conventional bulbs! • Will last over 50,000 hours of continuous use!
• Virtually indestructible and will hold up to the harsh marine environment!

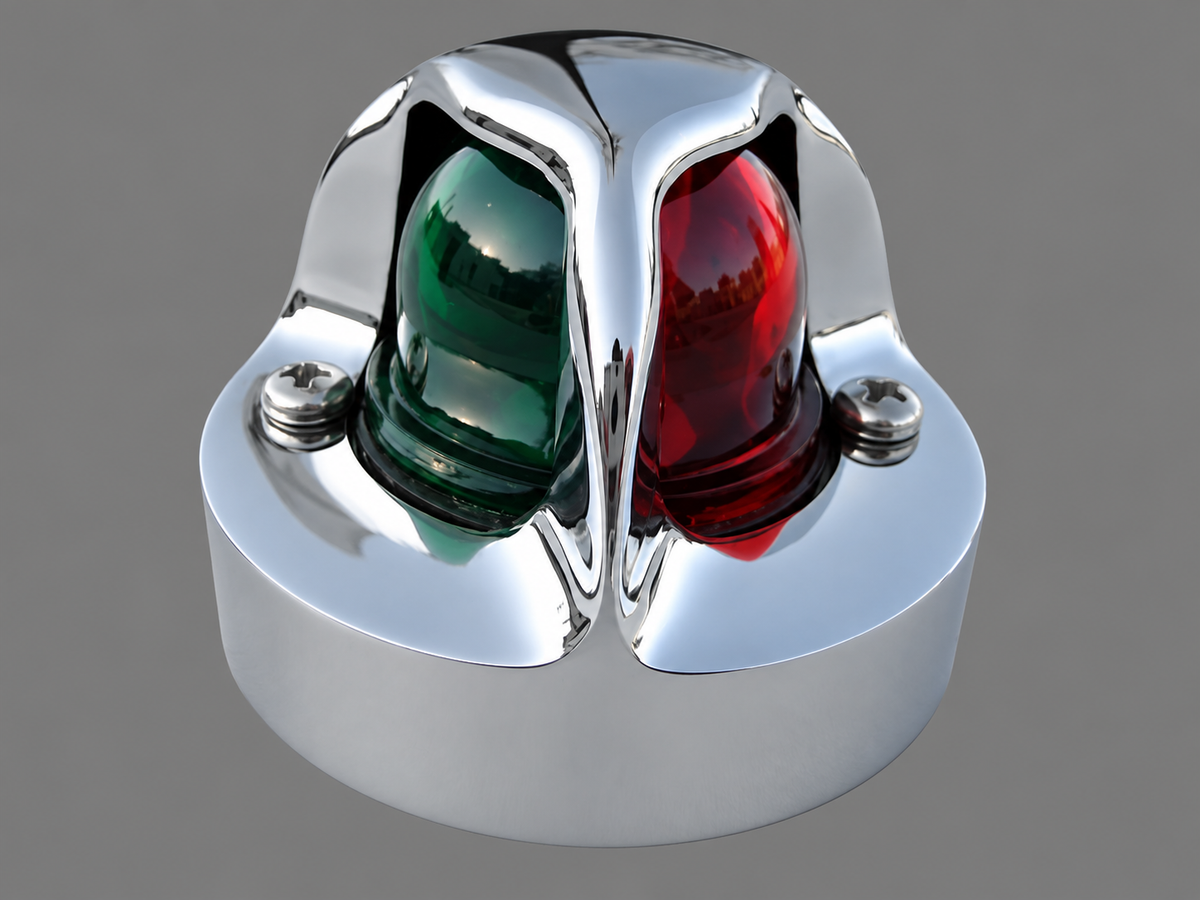

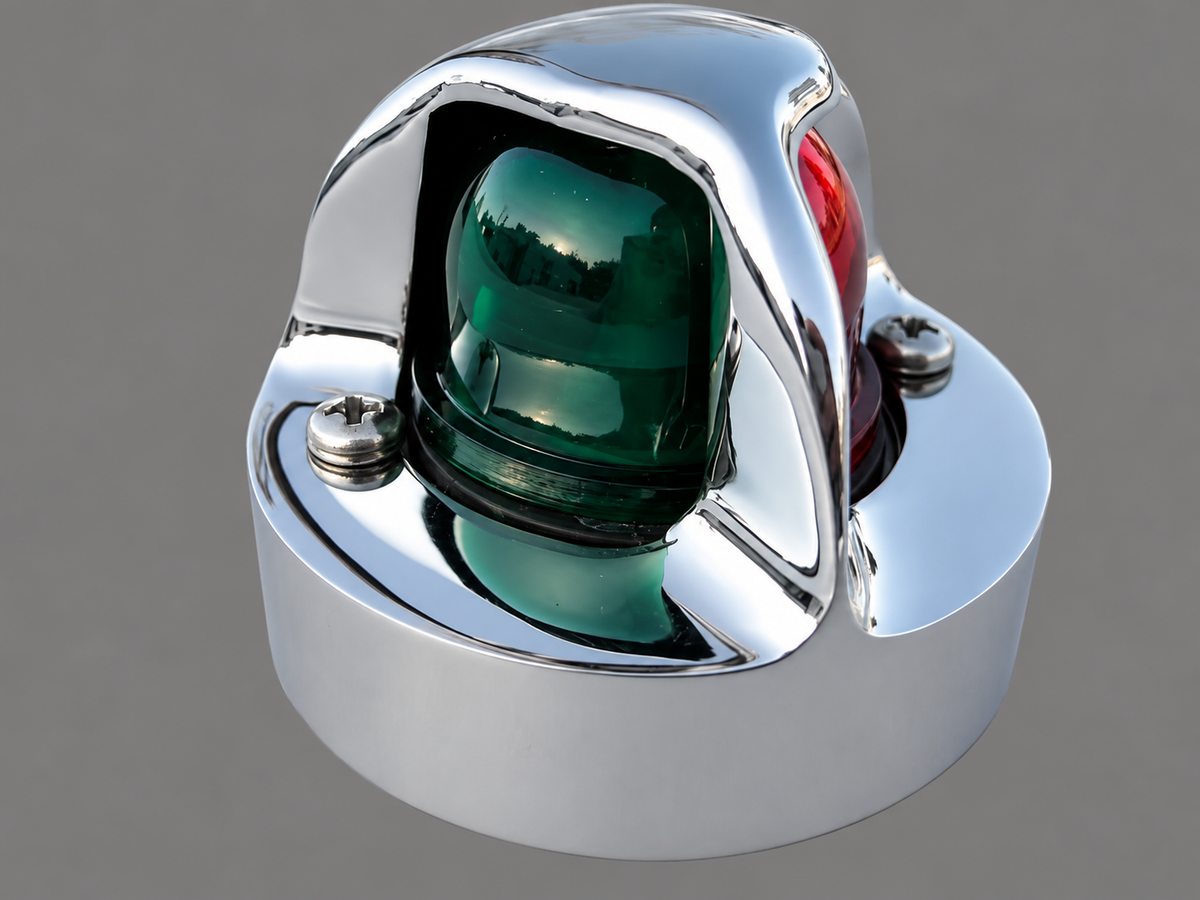

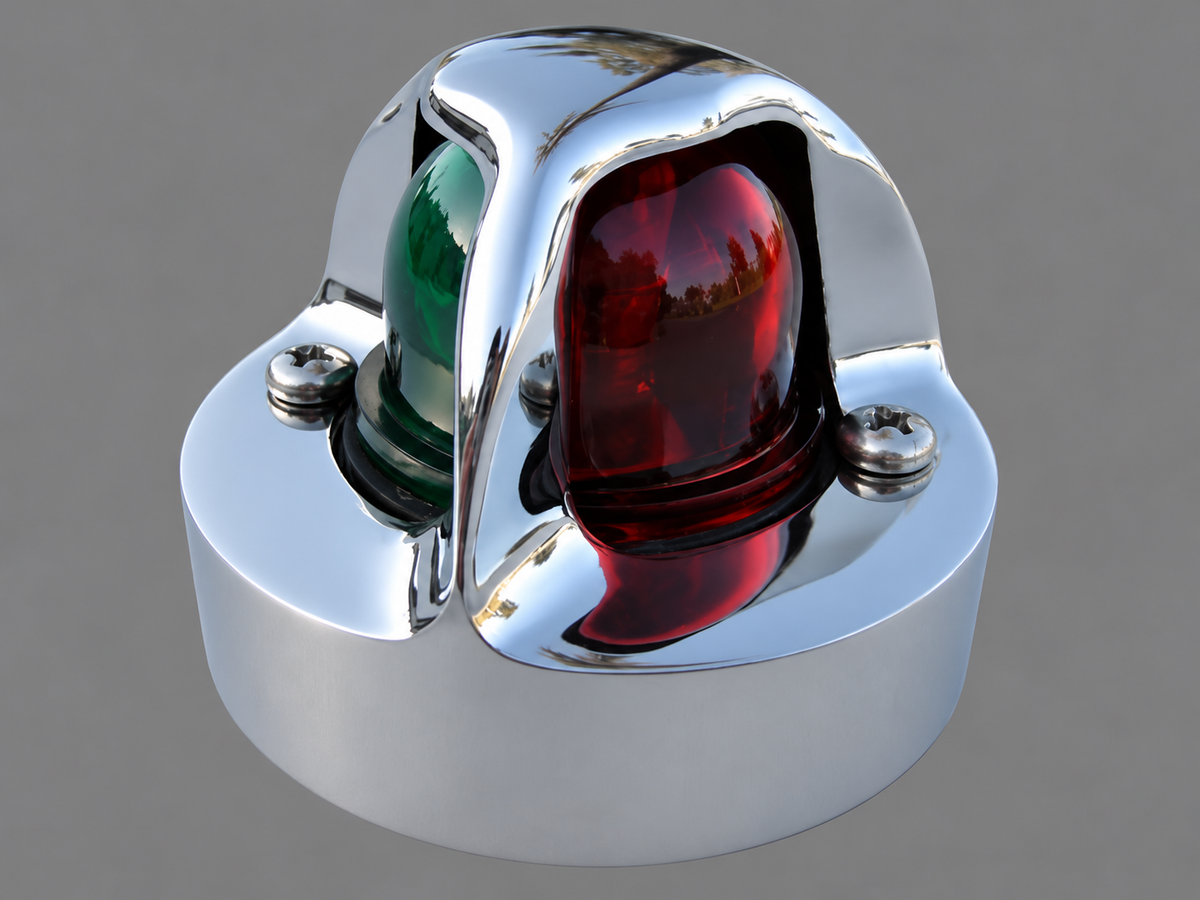

Boston Whaler Classic OEM style navigation bow light used on Classic Boston Whalers from 1958 until approximately 1984 when Perko lights started being used. *THIS IS NOT A PERKO LIGHT* Made from high quality, mirror polished true 316 stainless steel, some vendors advertise stainless items as 316, although they are an inferior 304 which costs much less. This item is also equipped with a 12 volt LED (light emitting diode) light source, which is far superior to conventional bulbs. 14 gauge wire is the most common but 16-18 can also be used. Requires a 3 amp fuse when wired separately, 7.5 amp when wiring with stern light. Will fit most models of classic Boston Whalers and other boats with similar dimensions.
The stainless housing has an outside diameter of approximately 2.5"
Distance between 3 bottom screws: 1 1/8"
Height: 1 7/8"
Note: To seal water from the base of the light caulking will be required
Note: The 12V LED bulbs use approximately 1.5 - 2 amps. 16-18 gauge wiring can be used but will be larger than necessary, In this instance,, you can simply snip off some strands to reduce the gauge and then use butt connectors.
Continuous Wave Diagram
Installation Instructions (steps 1-4)
